Don't let filter sizing confusion leave your home's air unprotected! If you've ever wondered why your Trion Air Bear filter doesn't quite match the dimensions printed on the box, you're not alone. After manufacturing filters for over a decade and helping millions of customers find the right fit, we've learned that understanding the difference between actual and nominal sizes is the key to optimal air filtration. Nominal size refers to the rounded, marketing-friendly dimensions you see advertised—like 16x25x5. Actual size, however, tells the real story: precise measurements that typically run about ¼ inch smaller per dimension to ensure your filter slides smoothly into its housing. For example, a 16x25x5 nominal Air Bear filter actually measures 15.75" x 24.25" x 4.88". This small difference makes a big impact—get it right, and your filter captures airborne contaminants efficiently while protecting your HVAC system. Get it wrong, and you risk air bypass, reduced efficiency, and compromised indoor air quality. Here's exactly what you need to know to protect your family and breathe easier.
Quick Answers
Trion Air Bear Air Filters
What they are: High-capacity 5-inch thick pleated air filters designed for whole-house HVAC systems requiring extended replacement intervals.
Key sizing fact: Nominal size is the rounded label size; actual size is approximately ¼" smaller per dimension for proper fit.
Available MERV ratings: 8, 11, and 13
Replacement frequency: Every 6-12 months depending on conditions
Pro tip: Always verify actual dimensions before ordering replacement filters to ensure perfect fit and prevent air bypass.
Top Takeaways
• Nominal vs. Actual: Nominal size is the rounded marketing dimension; actual size is the precise measurement typically ¼" smaller per dimension for proper filter housing fit.
• Sizing Matters: Incorrect filter sizing causes air bypass, reducing filtration efficiency and allowing contaminants to circulate through your home.
• Know Your Numbers: Common Air Bear sizes include 16x25x3 (actual: 15.75" x 24.25" x 3.06"), 16x25x5 (actual: 15.75" x 24.25" x 4.88"), and 20x25x5 (actual: 19.75" x 24.25" x 4.88").
• MERV Ratings Available: Air Bear filters come in MERV 8, 11, and 13, with higher ratings capturing smaller particles but potentially requiring HVAC system verification for airflow compatibility.
• Measure Before Ordering: Always verify actual dimensions of your current filter or filter slot to ensure the replacement fits correctly and maintains an effective seal against air bypass.
What Is Nominal Size?

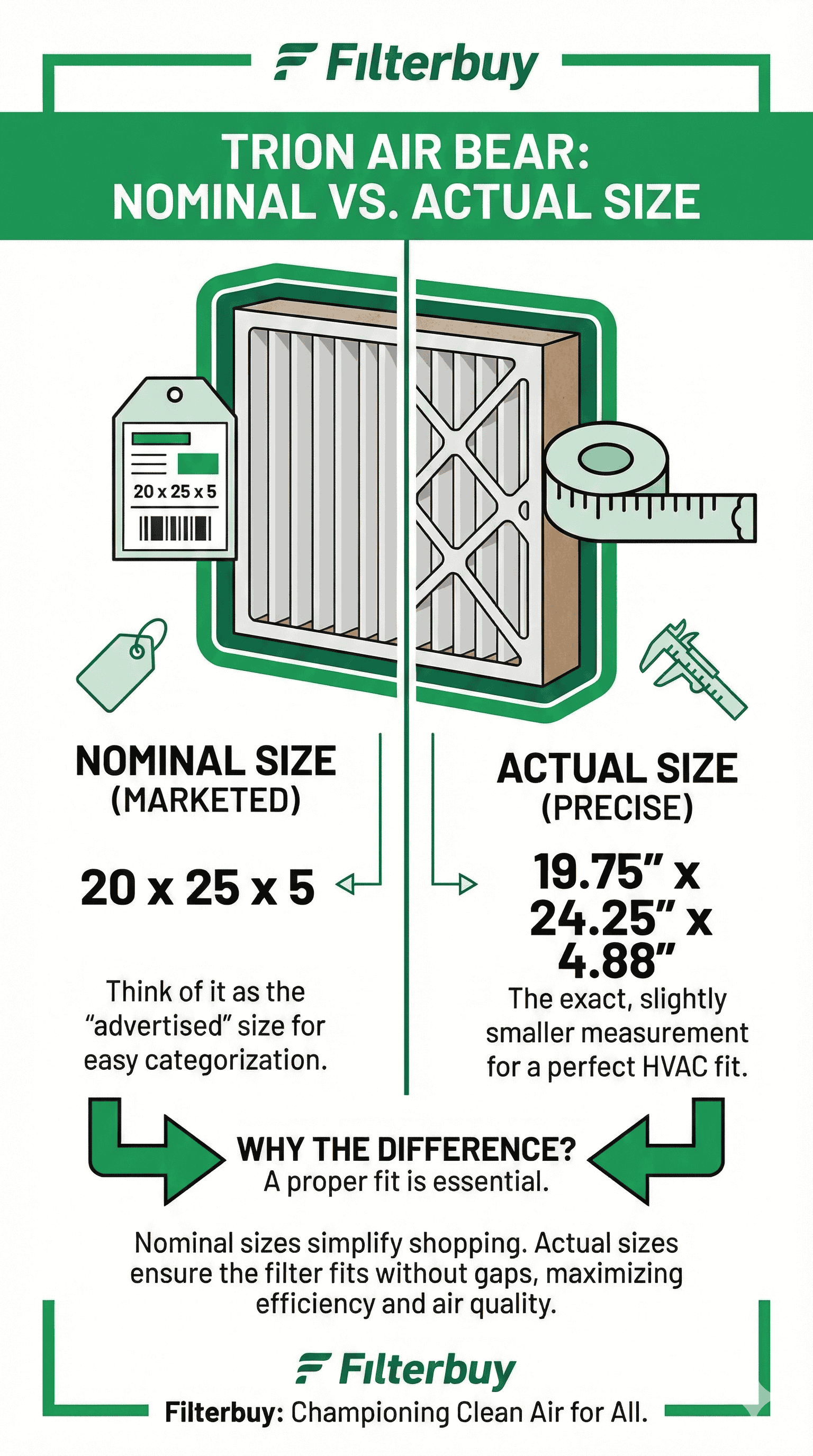

Nominal size is the rounded, standardized dimension used for labeling and ordering air filters. Manufacturers round measurements to the nearest whole or half inch to simplify product identification. When you see a Trion Air Bear labeled as 20x25x5, that's the nominal size—a convenient shorthand that makes shopping and replacement straightforward.
What Is Actual Size?
Actual size represents the precise physical dimensions of your filter, typically measured to the nearest 1/8 or 1/16 inch. These exact measurements ensure proper fit within your HVAC system's filter housing. Trion Air Bear filters are intentionally manufactured slightly smaller than their nominal dimensions—usually about ¼ inch per dimension—to allow easy insertion and removal while maintaining an effective seal.
Trion Air Bear Sizing Examples
Here's how common Air Bear nominal sizes translate to actual dimensions:
• 16x25x3 nominal → 15.75" x 24.25" x 3.06" actual
• 16x25x5 nominal → 15.75" x 24.25" x 4.88" actual
• 20x20x5 nominal → 19.75" x 20.75" x 4.88" actual
• 20x25x5 nominal → 19.75" x 24.25" x 4.88" actual
Why the Difference Matters
Proper filter sizing isn't just about convenience—it directly impacts your indoor air quality and HVAC system performance. A filter that's too large won't fit, while one that's too small creates gaps that allow unfiltered air to bypass the media entirely. This bypass reduces filtration efficiency and can allow dust, allergens, and other particles to circulate throughout your home. By understanding actual versus nominal sizing, you ensure a snug fit that maximizes particle capture and protects your heating and cooling equipment from debris buildup.
"After manufacturing air filters for over a decade and working with millions of customers, we've seen firsthand how proper sizing transforms indoor air quality. The quarter-inch difference between nominal and actual size may seem small, but it's engineered precisely to protect your family's health while keeping your HVAC system running at peak efficiency."
Essential Resources
Make an informed decision with these carefully selected resources that our air quality experts recommend:
1. Official Trion Air Bear Specifications
Get the manufacturer's precise sizing charts and MERV rating details directly from Johnson Controls. Essential for verifying exact dimensions before ordering.
Link: Johnson Controls Air Bear Documentation
2. EPA Guide to Air Cleaners in the Home
Understand how HVAC filters improve indoor air quality with this authoritative federal resource. Includes guidance on MERV ratings and filtration effectiveness.
Link: EPA Guide to Air Cleaners in the Home
3. EPA MERV Rating Explanation
Learn what MERV ratings mean for particle capture efficiency. Critical for choosing the right Air Bear filter level for your home's specific needs.
Link: EPA - What is a MERV Rating?
4. ASHRAE Standard 52.2 Overview
The industry standard for testing air filter efficiency. Understand how Air Bear filters are tested and rated for performance.
Link: ASHRAE Standards and Guidelines
5. EPA Indoor Air Quality Resources
Comprehensive federal guidance on improving your home's air quality. Learn why air filtration matters for family health.
Link: EPA Indoor Air Quality (IAQ)
6. How to Measure Your Air Filter Correctly
Step-by-step measuring instructions to ensure you order the right size. Avoid costly mistakes with proper measurement technique.
Link: Filterbuy - How to Measure Your Air Filter
7. Trion Air Bear Compatible Replacement Filters
Browse high-quality replacement filters that match Air Bear specifications. American-made options at competitive prices delivered to your door.
Link: Filterbuy Whole House Air Filters
Supporting Statistics
Understanding air filtration isn't just about sizing—it's about protecting your family in spaces where they spend most of their time. Here's what the data tells us:
1. 90% of Time Spent Indoors
According to the EPA, Americans spend approximately 90% of their time indoors, making indoor air quality critical to overall health. Proper filter sizing ensures every breath your family takes is filtered effectively.
Source: EPA Indoor Air Quality
2. Indoor Pollutants 2-5x Higher Than Outdoor
Indoor pollutant levels often measure 2 to 5 times higher than outdoor concentrations. A properly fitted Air Bear filter actively removes contaminants rather than letting them bypass through gaps.
Source: EPA Report on Environment - Indoor Air Quality
3. MERV 7-13 Rivals HEPA Performance
EPA research indicates that filters with MERV ratings between 7 and 13 are nearly as effective as true HEPA filters for controlling most indoor airborne particles—and Air Bear filters are available in MERV 8, 11, and 13 ratings.
Source: EPA Guide to Air Cleaners in the Home
Final Thoughts & Opinion
Understanding the difference between actual and nominal filter sizes isn't just technical knowledge—it's the foundation of effective home air quality management. After working with millions of homeowners, we've seen the real-world impact of proper filter sizing:
• Families report fewer allergy symptoms when their filters fit correctly
• HVAC systems last longer without debris bypass damaging components
• Energy bills decrease when systems don't work overtime compensating for poor filtration
Our recommendation: Always verify actual dimensions before ordering replacement filters. That quarter-inch difference between nominal and actual size is intentional engineering—embrace it, and you'll protect your greatest assets: your family, your home, and your HVAC system.
FAQ on Trion Air Bear Air Filters
Q: What sizes do Trion Air Bear filters come in?
A: Air Bear filters are available in multiple nominal sizes including 16x25x3, 16x25x5, 20x20x5, and 20x25x5. Each nominal size has corresponding actual dimensions approximately ¼ inch smaller per dimension for proper housing fit. Always check the actual size specifications to ensure compatibility with your HVAC system.
Q: How often should I replace my Trion Air Bear filter?
A: Replace Air Bear filters every 6 to 12 months depending on usage and environmental factors. Homes with pets, allergies, smokers, or high dust levels may need more frequent changes. Check your filter monthly—if it appears dark gray or clogged, it's time for replacement regardless of the calendar.
Q: What MERV ratings are available for Air Bear filters?
A: Trion Air Bear filters come in MERV 8, MERV 11, and MERV 13 ratings. MERV 8 captures 90% of particles 3-10 microns. MERV 11 captures 95% including some bacteria. MERV 13 captures 98% of particles including some viruses. Higher MERV ratings provide better filtration but may require verification that your HVAC system can handle the increased airflow resistance.
Q: Can I use a generic replacement filter instead of Trion Air Bear?
A: Yes—compatible replacement filters work effectively when they match the actual size specifications of your Air Bear system. The key is ensuring the actual dimensions match precisely. Quality aftermarket filters from reputable manufacturers often meet or exceed OEM specifications at a lower cost. Look for American-made filters with verified MERV ratings for best results.
Q: Why is my Air Bear filter slightly smaller than the labeled size?
A: This is intentional engineering! The nominal size (like 20x25x5) is rounded for easy identification, while the actual size (19.75" x 24.25" x 4.88") is precision-manufactured to fit within standard filter housings. That quarter-inch clearance per dimension allows you to easily slide the filter in and out while maintaining an effective seal against air bypass.
